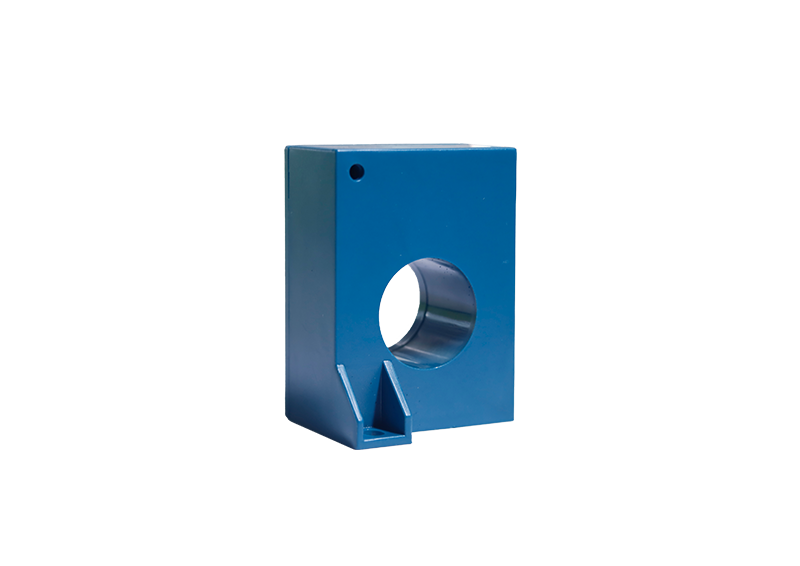

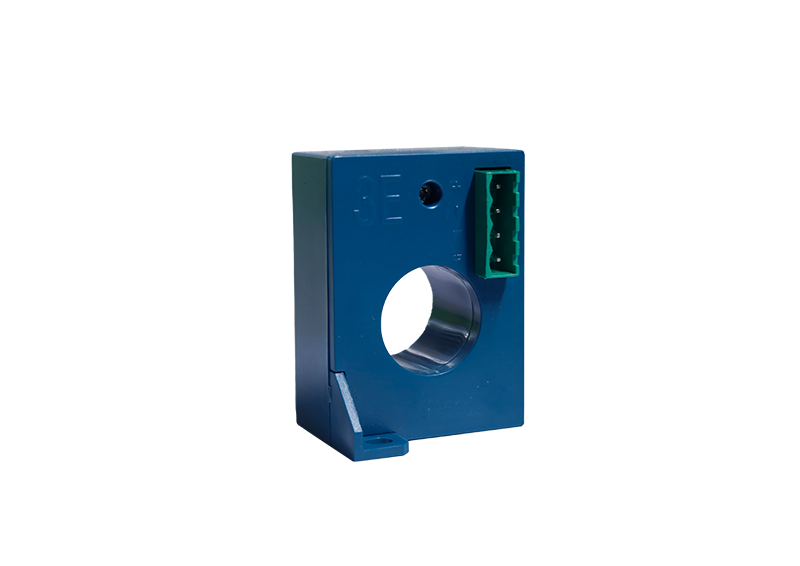

SLD Analog Output Leakage Current Sensor Series
SLD13K（±12V、<100mA、>10uS、DC、0.8%~1%、-40℃~85℃）
SLD13K（±12V、<100mA、>10uS、DC、0.8%~1%、-40℃~85℃）
Product Features:
Excellent accuracy
Very good linearity
Low temperature drift
Excellent accuracy
Very good linearity
Low temperature drift
Specification Parameters
| Measurement range Ip | 10~100mA |
Product Aperture(mm) | φ23 |
| Resolution Ratio | — |
| Rated Output | 5V |
| Supply Voltage | ±12～±15(±10%) |
| Accuracy | ±1% |
| Linearity | ±1% |
| Zero Offset | — |
| Magnetic Imbalance | — |
| Zero point offset temperature drift | ±3mV/C |
| Amplitude temperature drift | ±3mV/C |
| Frequency bandwidth | DC |
| Response Time | ≤750mS |
Current Consumption | ≤12mA |
| Ambient operating temperature | -40°C~85°C |
| Ambient storage temperature | -40°C~90°C |
| Mass | ≤60g |
| Insulation Voltage | 3KVrms/50HZ/2mA/1min |
| Isolation resistor | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 7 |
| Clearance | 7 |
| Reference standards | EN50178JB/T7490 |
| — | — |
