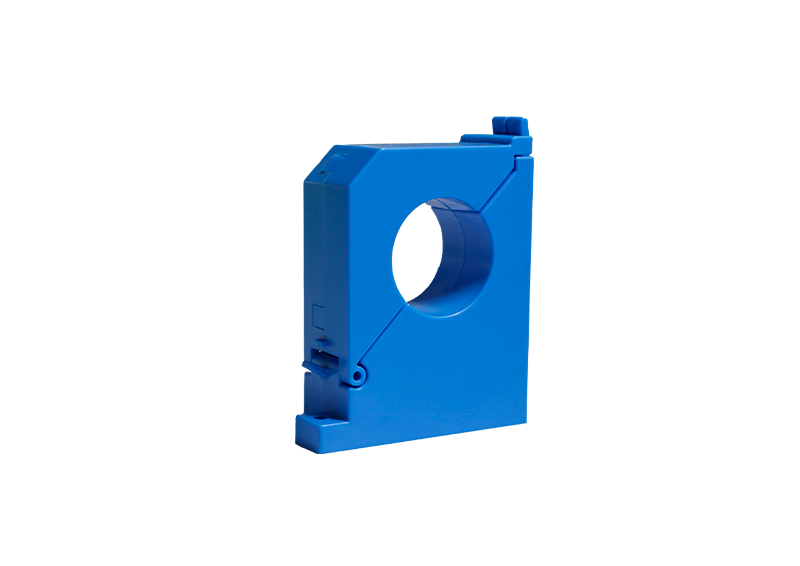

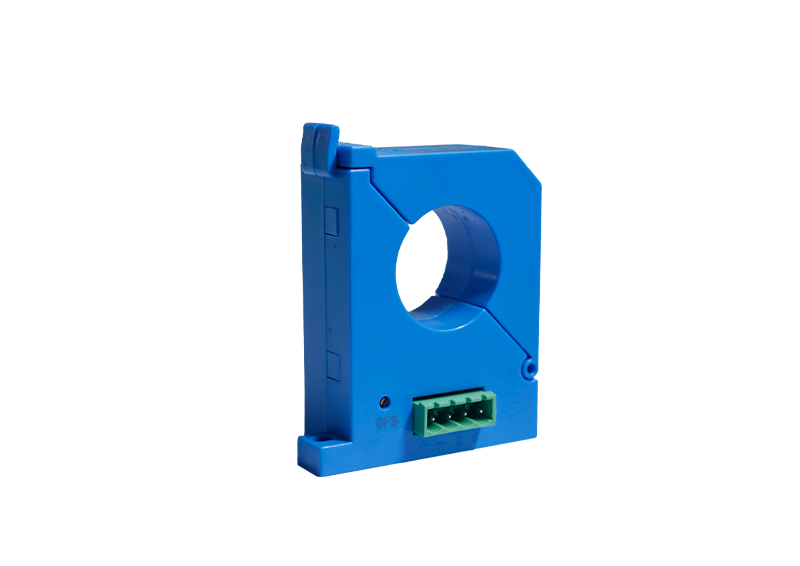

SLD Analog Output Leakage Current Sensor Series
SLD24K（12V、<100mA、>10uS、DC、0.8%~1%、 Other）
SLD24K（12V、<100mA、>10uS、DC、0.8%~1%、 Other）
Product Features:
Good stability
Excellent accuracy
Very good linearity
Low temperature drift
Strong anti-interference ability
Good stability
Excellent accuracy
Very good linearity
Low temperature drift
Strong anti-interference ability
Specification Parameters
| Measurement range Ip | 10~20mA |
Product Aperture(mm) | φ32.9 |
| Resolution Ratio | — |
| Rated Output | 5V |
| Supply Voltage | ±12～±15V(±5%) |
| Accuracy | ±1% |
| Linearity | ±1% |
| Zero Offset | ±300mV |
| Magnetic Imbalance | — |
| Zero point offset temperature drift | ±6mV/℃ |
| Amplitude temperature drift | ±6mV/℃ |
| Frequency bandwidth | DC |
| Response Time | ≤1S |
Current Consumption | ≤20mA |
| Ambient operating temperature | -10~60°C |
| Ambient storage temperature | -20~70°C |
| Mass | ≤110g |
| Insulation Voltage | 2.5KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 7 |
| Clearance | 7 |
| Reference standards | EN50178JB/T7490 |
| — | — |
