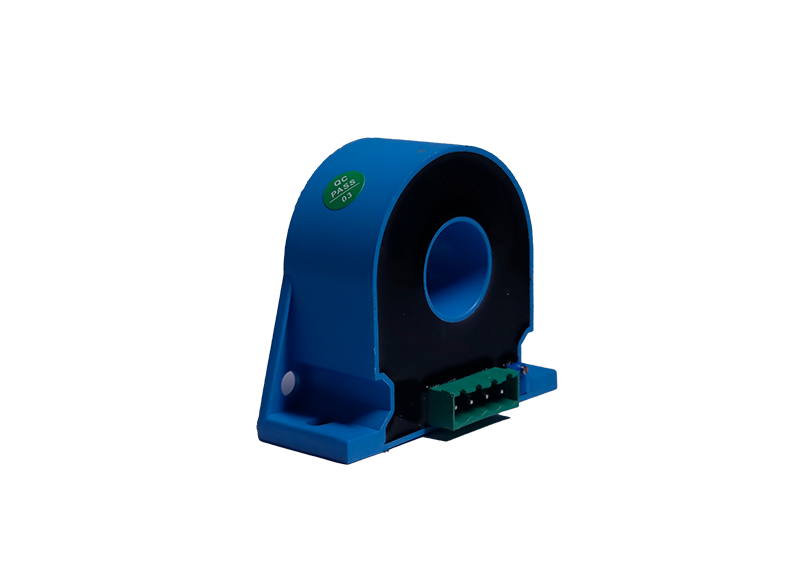

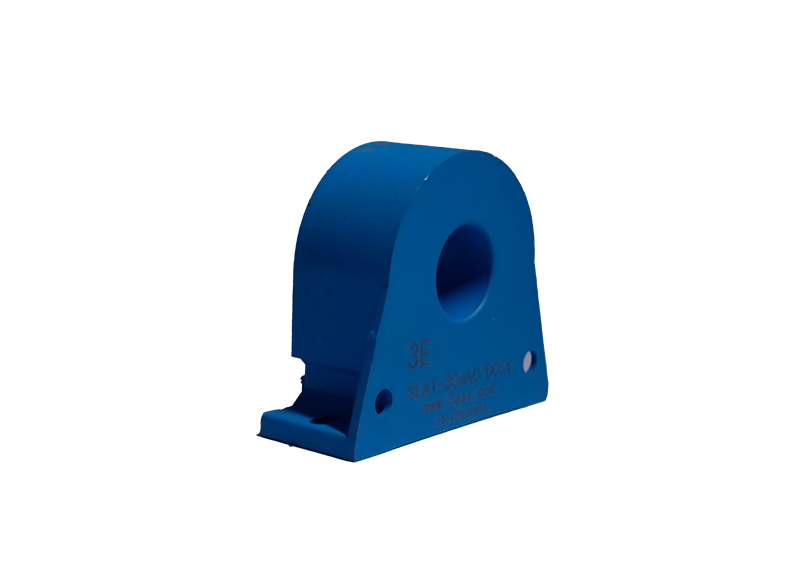

SLD Analog Output Leakage Current Sensor Series
SLA1（12V、<100mA、>10uS、<10KHz、0.8%~1%、-40℃~85℃）
SLA1（12V、<100mA、>10uS、<10KHz、0.8%~1%、-40℃~85℃）
Product Features:
Magnetic modulation technology
Primary nominal current：10mA-100mA
Operating ambient temperature range：-40~85℃
For DC masurement
Magnetic modulation technology
Primary nominal current：10mA-100mA
Operating ambient temperature range：-40~85℃
For DC masurement
Specification Parameters
| Measurement range Ip | 10~100mA |
Product Aperture(mm) | φ20 |
| Resolution Ratio | — |
| Rated Output | 5V |
| Supply Voltage | ±12～±15V(±10%) |
| Accuracy | ±1% |
| Linearity | ±1% |
| Zero Offset | ±20mV |
| Magnetic Imbalance | — |
| Zero point offset temperature drift | ±2mV/℃ |
| Amplitude temperature drift | ±2mV/℃ |
| Frequency bandwidth | ≤1000HZ |
| Response Time | ≤300mS |
Current Consumption | ≤6mA |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~90°C |
| Mass | ≤130g |
| Insulation Voltage | 3KVrms/50HZ/2mA/1min |
| Insulation Impedance | 100MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 23 |
| Clearance | 16 |
| Reference standards | EN50178JB/T7490 |
| — | — |
