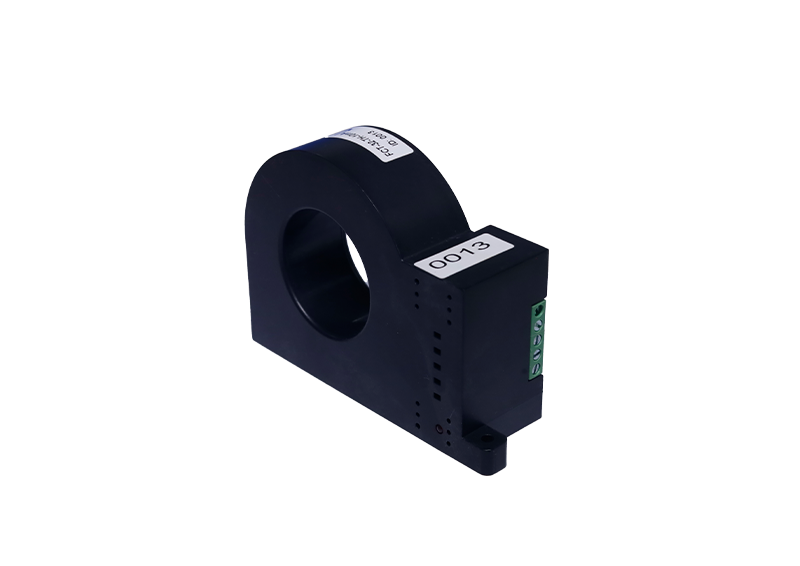

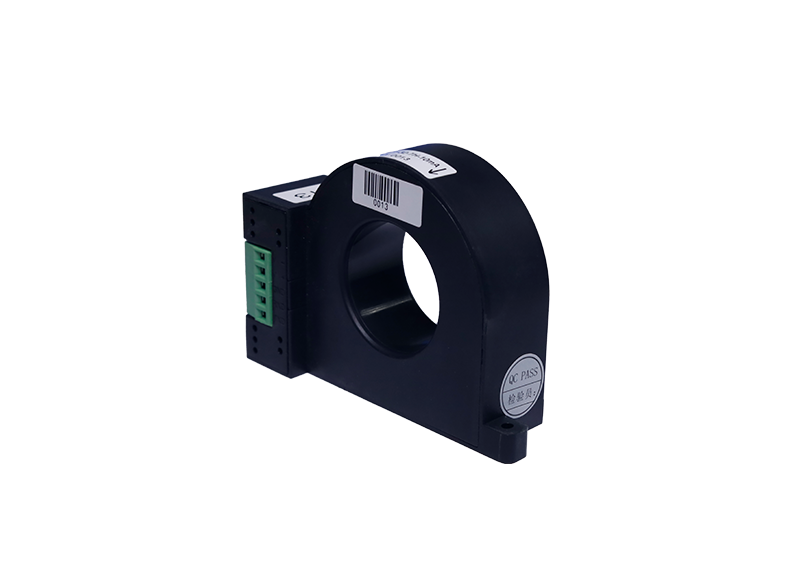

SLD Digital Current Sensor Series (RS485 output)
SLD2SX（12V、<100mA、>10uS、DC、0.8%~1%、 Other）
SLD2SX（12V、<100mA、>10uS、DC、0.8%~1%、 Other）
Product Features:
Stable performance
RS485 output, baud rate: 9600bps
Primary nominal current：10mA-100mA
Operating ambient temperature range：-10~70℃
For DC masurement
Stable performance
RS485 output, baud rate: 9600bps
Primary nominal current：10mA-100mA
Operating ambient temperature range：-10~70℃
For DC masurement
Specification Parameters
| Measurement range Ip | 10~100mA |
Product Aperture(mm) | φ40 |
| Baud Rate | 9600bps |
| Output | RS485 |
| Supply Voltage | 8～12V |
| Accuracy | ±1% |
| Linearity | ±1% |
| Zero Offset | ±250μA |
| Magnetic Imbalance | — |
| Zero point offset temperature drift | ±20μA/℃ |
| Amplitude temperature drift | ±20μA/℃ |
| Frequency bandwidth | DC |
| Response Time | ≤500mS |
Current Consumption | ≤15mA |
| Ambient operating temperature | -10~70°C |
| Ambient storage temperature | -10~75°C |
| Mass | ≤168g |
| Insulation Voltage | 3KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 6.4 |
| Clearance | 6.4 |
| Reference standards | EN50178JB/T7490 |
| — | — |
