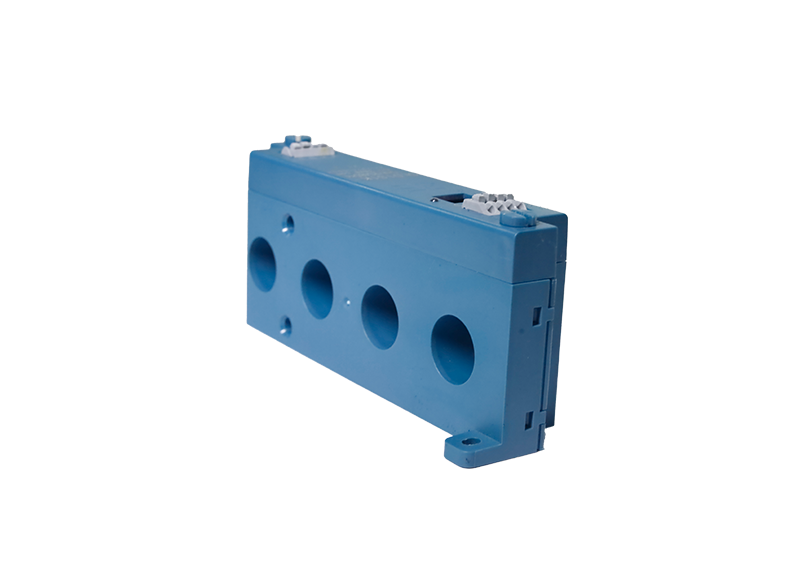

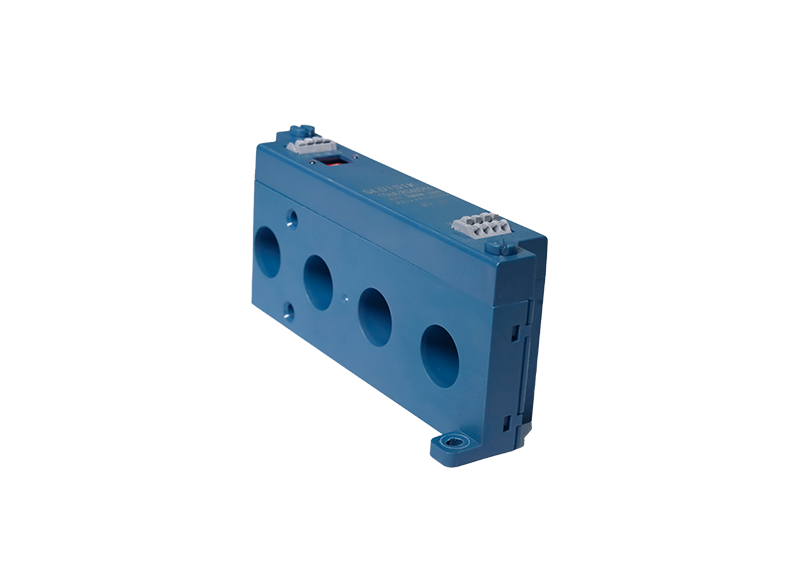

SLD Digital Current Sensor Series (RS485 output)
SLD1FS/KLD1FS（12V、<100mA、DC、0.8%~1%、-40℃~85℃）
SLD1FS/KLD1FS（12V、<100mA、DC、0.8%~1%、-40℃~85℃）
Product Features:
Unipolar +12Vsupply voltage
Peak measurement current:±12mA
Ambient operating temperature：-40℃∽+85℃
Mosbus-RTU protocol，RS485 output, baud rate: 9600bps
4 channels operating at the same time
Mosbus-RTU address configuration by 4-digit DIP switch.
Unipolar +12Vsupply voltage
Peak measurement current:±12mA
Ambient operating temperature：-40℃∽+85℃
Mosbus-RTU protocol，RS485 output, baud rate: 9600bps
4 channels operating at the same time
Mosbus-RTU address configuration by 4-digit DIP switch.
Specification Parameters
| Measurement range Ip | 10mA |
Product Aperture(mm) | φ20*4 |
| Baud Rate | 9600bps |
| Output | RS485 |
| Supply Voltage | 12V（±10%） |
| Accuracy | ±1% |
| Linearity | ±1% |
| Zero Offset | ±100μA |
| Magnetic Imbalance | — |
| Zero point offset temperature drift | ±50μA/℃ |
| Amplitude temperature drift | ±50μA/℃ |
| Frequency bandwidth | DC |
| Response Time | — |
Current Consumption | ≤50mA |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~85°C |
| Mass | ≤300g |
| Insulation Voltage | 3KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 33 |
| Clearance | 28 |
| Reference standards | EN50178JB/T7490 |
| — | — |
