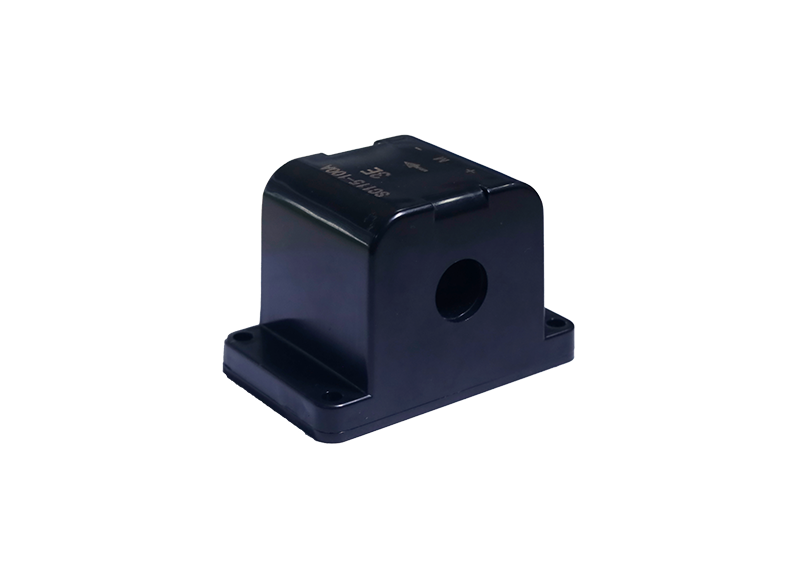

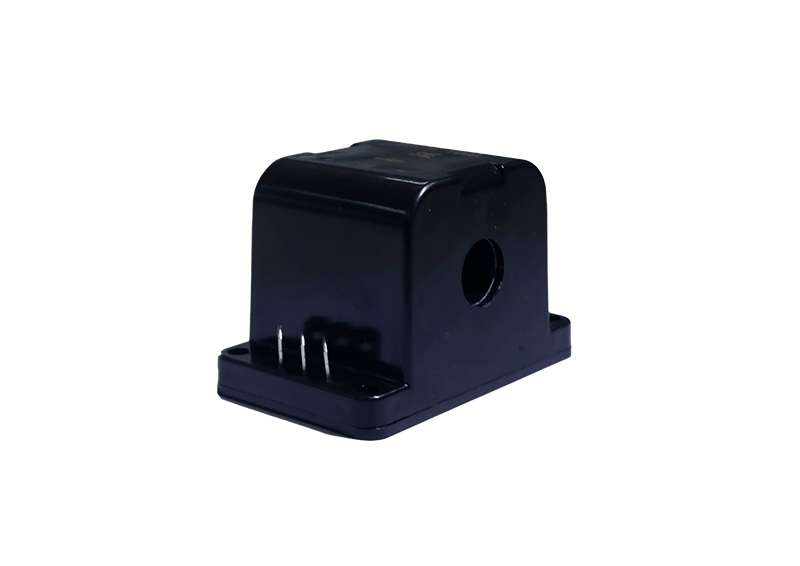

Closed Loop Hall Effect Current Sensor Series
SC115（±12V、<100mA、1uS~3uS、10KHz~100KHz、0.5%~0.8%、 Other）
SC115（±12V、<100mA、1uS~3uS、10KHz~100KHz、0.5%~0.8%、 Other）
Product Features:
Closed loop hall-effect technology
With galvanic insulation between primary and secondary circuit
Primary nominal current：50-300mA
Operating ambient temperature range：-40~70℃
Applied in the DC, AC and pulse current
Excellent accuracy，low cost，good long-term stability
Closed loop hall-effect technology
With galvanic insulation between primary and secondary circuit
Primary nominal current：50-300mA
Operating ambient temperature range：-40~70℃
Applied in the DC, AC and pulse current
Excellent accuracy，low cost，good long-term stability
Specification Parameters
| Measurement range Ip | 50~300mA |
Product Aperture(mm) | φ15 |
| Coil Turns (ratio) N | 1000; 3000 |
| Rated Output | Io=Ip/N |
| Supply Voltage | ±12~±18V |
| Accuracy | ±0.5% |
| Linearity | ±1% |
| Zero Offset | ±0.2mA |
| Magnetic Imbalance | ±0.2mA |
| Zero point offset temperature drift | ±0.5mA |
| Amplitude temperature drift | ±1mA |
| Frequency bandwidth | 100KHz |
| Response Time | ≤3μS |
Current Consumption | ≤30mA+Io |
| Ambient operating temperature | -40~70°C |
| Ambient storage temperature | -50~90°C |
| Mass | ≤200g |
| Insulation Voltage | 2.5KVrms/50HZ/2mA/1min |
| Insulation Impedance | 100MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 18 |
| Clearance | 18 |
| Reference standards | EN50178JB/T7490 |
| — | — |
