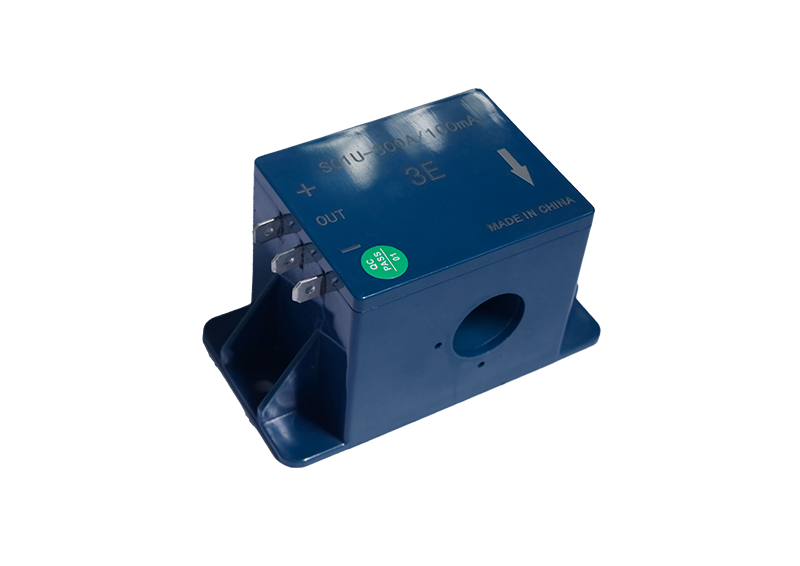

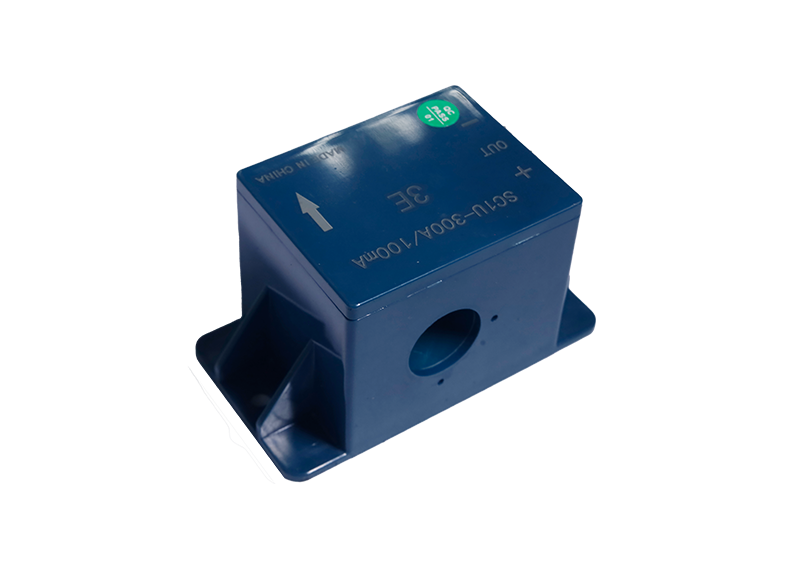

Closed Loop Hall Effect Current Sensor Series
SC1U（5V、<100mA、1uS~3uS、100KHz~250KHz、0.5%~0.8%、 Other）
SC1U（5V、<100mA、1uS~3uS、100KHz~250KHz、0.5%~0.8%、 Other）
Product Features:
Closed loop hall-effect technology
Galvanic insulation between primary and secondary circuit
Operating ambient temperature range：-50~85℃
Applied in the DC, AC and pulse current
Excellent accuracy，low cost，good long-term stability
Closed loop hall-effect technology
Galvanic insulation between primary and secondary circuit
Operating ambient temperature range：-50~85℃
Applied in the DC, AC and pulse current
Excellent accuracy，low cost，good long-term stability
Specification Parameters
| Measurement range Ip | 300mA |
Product Aperture(mm) | φ20 |
| Coil Turns (ratio) N | 1:3000；1:2000 |
| Rated Output | 100mA；150mA |
| Supply Voltage | ±12~±18V(±5%) |
| Accuracy | ±0.5% |
| Linearity | ±0.1% |
| Zero Offset | ±0.3mA |
| Magnetic Imbalance | ±0.3mA |
| Zero point offset temperature drift | ±0.5mA |
| Amplitude temperature drift | — |
| Frequency bandwidth | 150KHz |
| Response Time | ≤1μS |
Current Consumption | ≤28mA+Io |
| Ambient operating temperature | -40~70°C |
| Ambient storage temperature | -50~90°C |
| Mass | ≤260g |
| Insulation Voltage | 6KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 52 |
| Clearance | 40 |
| Reference standards | EN50178JB/T7490 |
| — | — |
