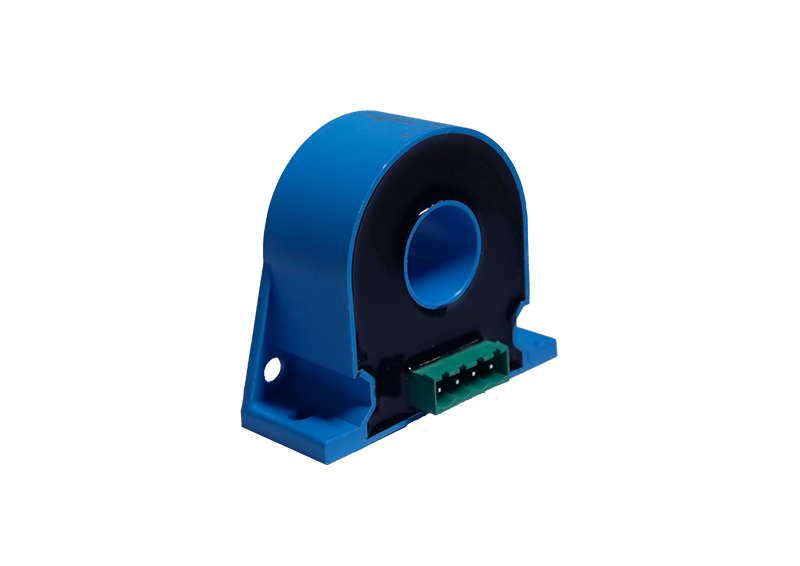

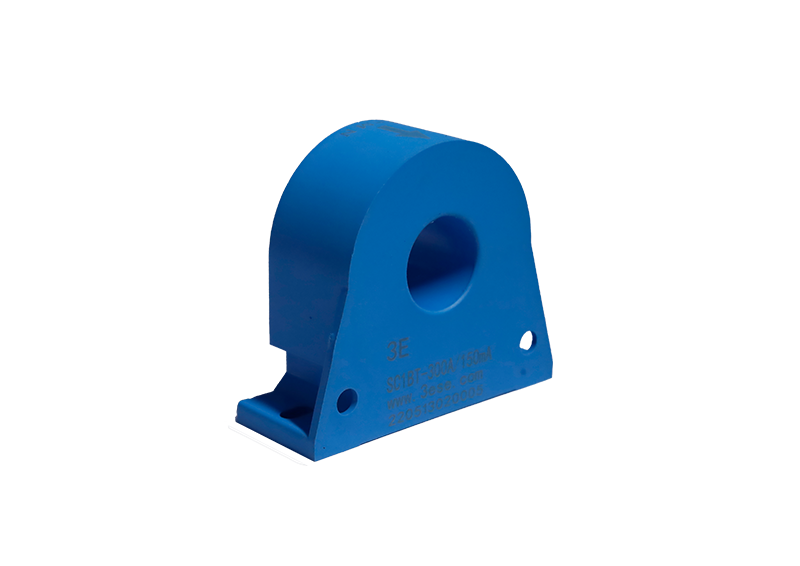

Closed Loop Hall Effect Current Sensor Series
SC1BT（±12V、<100mA、1uS~3uS、10KHz~100KHz、0.5%~0.8%、-40℃~85℃）
SC1BT（±12V、<100mA、1uS~3uS、10KHz~100KHz、0.5%~0.8%、-40℃~85℃）
Product Features:
Closed loop hall-effect technology
With galvanic insulation between primary and secondary circuit
Primary nominal current：50-300mA
Operating ambient temperature range：-40~85℃
Applied in the DC, AC and pulse current
Excellent accuracy，low cost，good long-term stability
Closed loop hall-effect technology
With galvanic insulation between primary and secondary circuit
Primary nominal current：50-300mA
Operating ambient temperature range：-40~85℃
Applied in the DC, AC and pulse current
Excellent accuracy，low cost，good long-term stability
Specification Parameters
| Measurement range Ip | 50~300mA |
Product Aperture(mm) | φ20 |
| Coil Turns (ratio) N | 1:1000; 1:2000; 1:3000 |
| Rated Output | Io=Ip/N |
| Supply Voltage | ±12~±15V(±10%) |
| Accuracy | ±0.5% |
| Linearity | ±0.15% |
| Zero Offset | ±0.2mA |
| Magnetic Imbalance | ±0.2mA |
| Zero point offset temperature drift | ±0.5mA |
| Amplitude temperature drift | ±0.6mA |
| Frequency bandwidth | 100KHz |
| Response Time | ≤3μS |
Current Consumption | ≤20mA |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~90°C |
| Mass | ≤117g |
| Insulation Voltage | 2.5KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 7.2 |
| Clearance | 7.2 |
| Reference standards | EN50178JB/T7490 |
| — | — |
