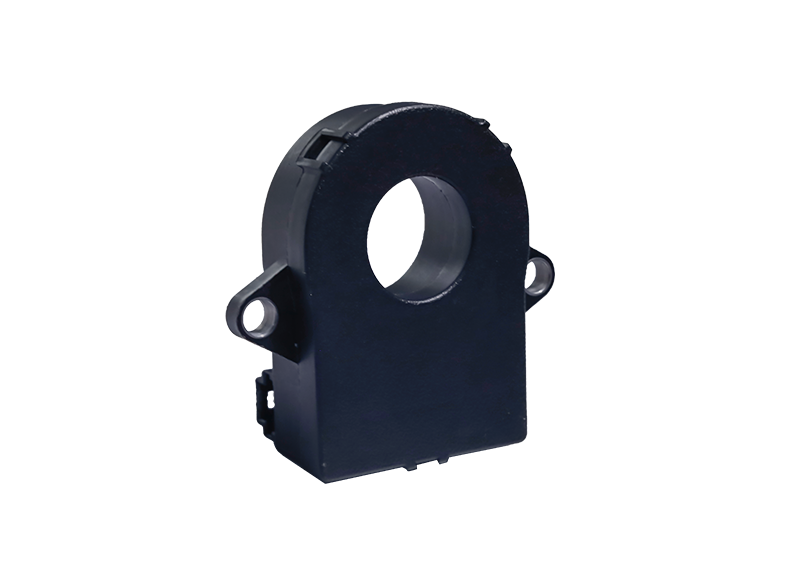

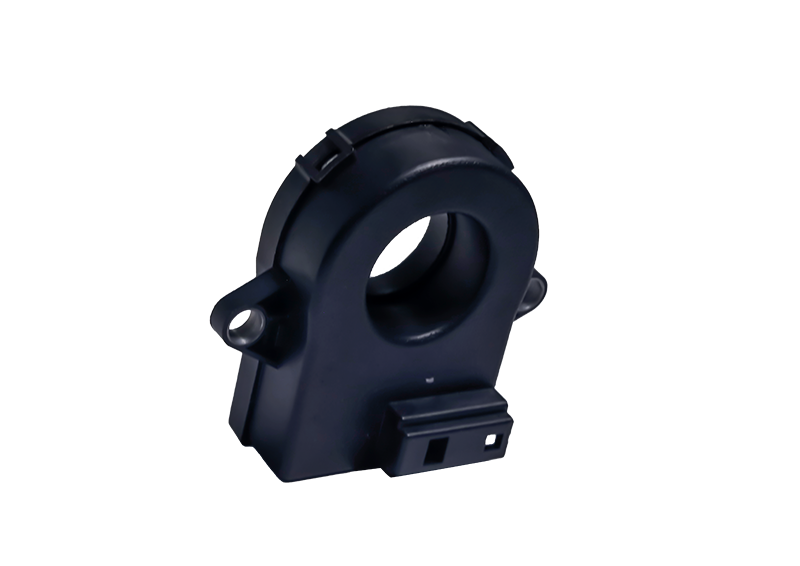

Fluxgate Current Sensor Series
SG24（±12V、50A~500A、3uS~10uS、<10KHz、0.5%~0.8%、-40℃~85℃）
SG24（±12V、50A~500A、3uS~10uS、<10KHz、0.5%~0.8%、-40℃~85℃）
Product Features:
12V single power supply
Rated current measurement range ±500A
Working temperature range: -40 ° C ∽+85 ° C
Output signal: High speed CAN(500kbps)
0.5% error in temperature range
Primary secondary side isolation measurement
12V single power supply
Rated current measurement range ±500A
Working temperature range: -40 ° C ∽+85 ° C
Output signal: High speed CAN(500kbps)
0.5% error in temperature range
Primary secondary side isolation measurement
Specification Parameters
| Measurement range Ip | 500A |
Product Aperture(mm) | Ф24.2 |
| Coil Turns (ratio) N | — |
| Output | CAN |
| Supply Voltage | 8~16V |
| Accuracy | ±0.5% |
| Linearity | ±0.1% |
| Zero Offset | ±10mV |
| Magnetic Imbalance | — |
| Zero point offset temperature drift | — |
| Amplitude temperature drift | ±70ppm/℃ |
| Frequency bandwidth | DC |
| Response Time | ≤100mS |
Current Consumption | ≤50mA |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~105°C |
| Mass | ≤80g |
| Insulation Voltage | 2.5KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 7.2 |
| Clearance | 6.95 |
| Reference standards | EN50178JB/T7490 |
| — | — |
