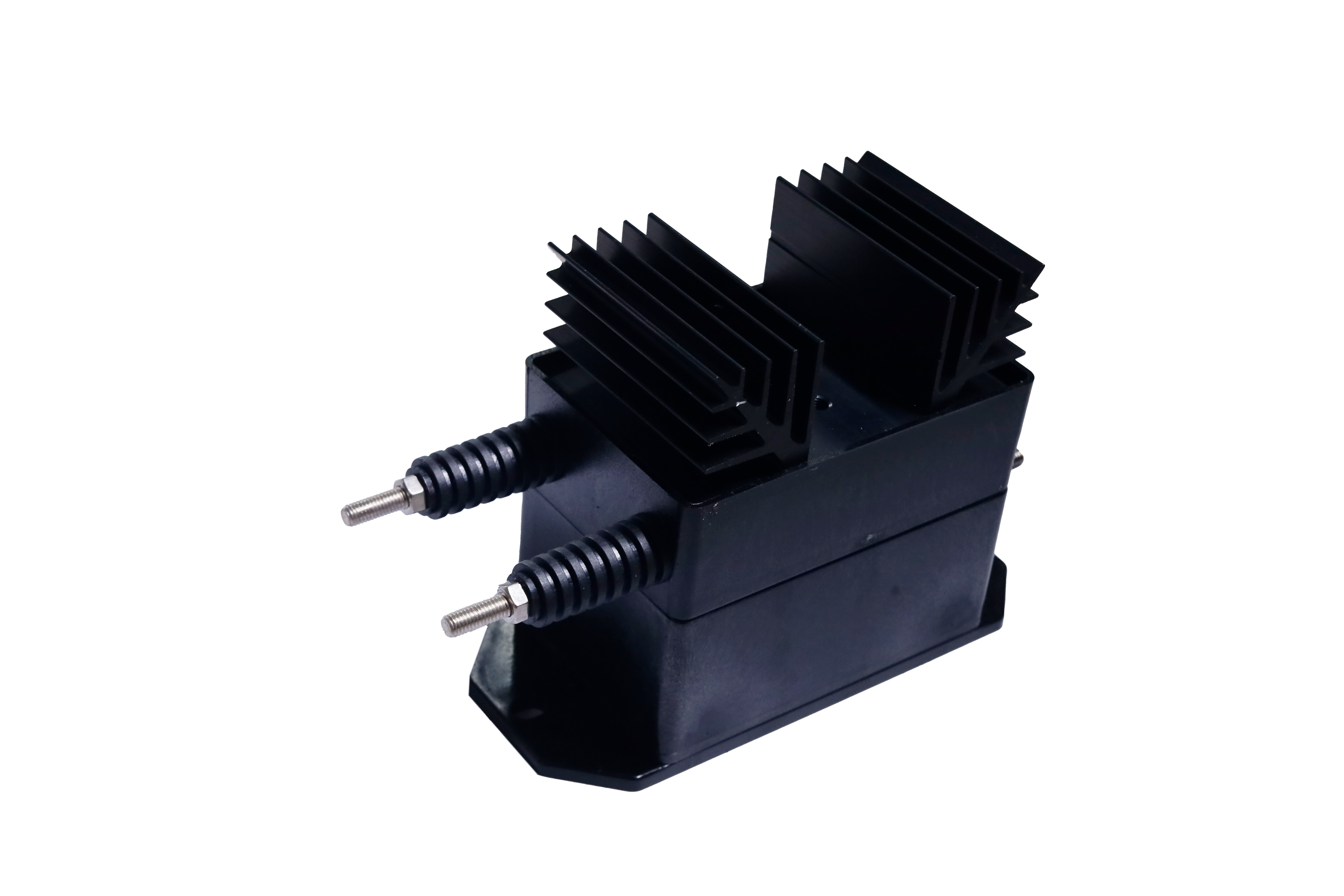

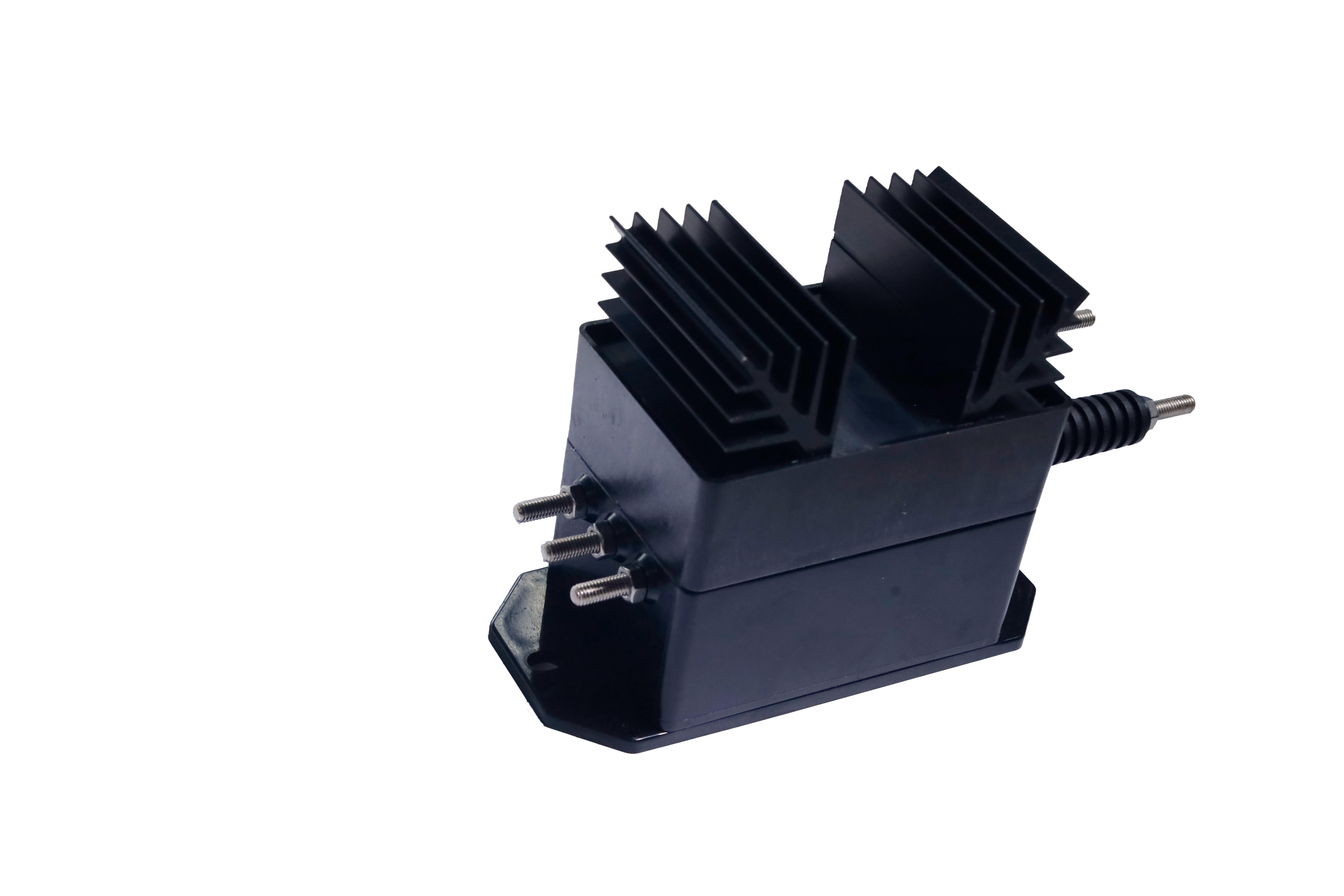

Voltage Sensor Series
SV3
SV3
Product Features:
Ambient temperature ：-40℃~85℃
Ambient temperature ：-40℃~85℃
Specification Parameters
±0.7%
| Measurement range Ip | 1000～5000V |
Product Aperture(mm) | — |
| Coil Turns (ratio) N | 20000；30000 |
| Rated Output | 50mA |
| Supply Voltage | ±15~±24V(±5%) |
| Accuracy | ±1% |
| Linearity | ±0.1% |
| Zero Offset | ±0.2mA |
| Magnetic Imbalance | — |
| Zero point offset temperature drift | — |
| Amplitude temperature drift | ±1mA/°C |
| Frequency bandwidth | 100KHz |
| Response Time | ≤200μS |
Current Consumption | ≤30mA+Io |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~90°C |
| Mass | ≤820g |
| Insulation Voltage | 12KVrms/50HZ/2mA/1min |
| Insulation Impedance | 100MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | — |
| Clearance | — |
| Reference standards | EN50178JB/T7490 |
| — | — |
