EV(electric vehicle) Current Sensor Series

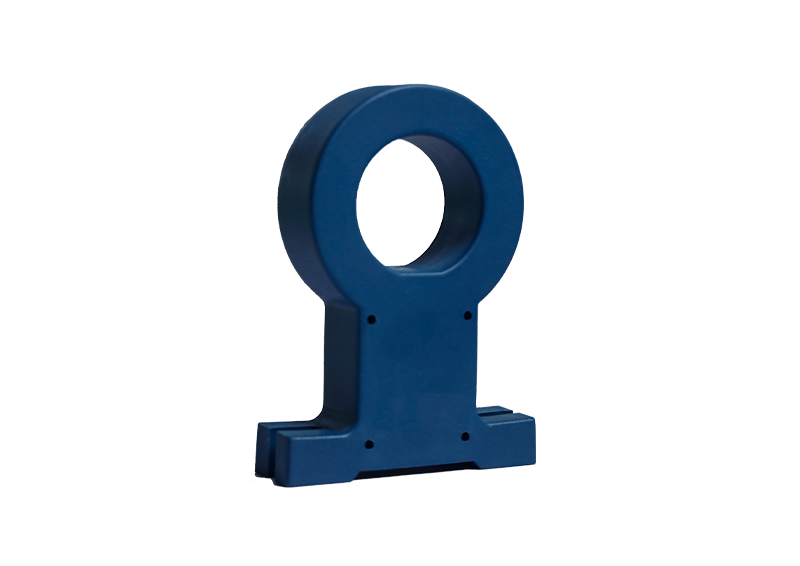

SP128GD5（±5V、50A~500A、3uS~10uS、<10KHz、0.8%~1%、-40℃~105℃）
SP128GD5（±5V、50A~500A、3uS~10uS、<10KHz、0.8%~1%、-40℃~105℃）
Product Features:
Open-loop Hall effect principle
Low voltage application
Single-pole +5VDC power supply
Primary current measurement range up to ±100A
Working temperature range: -40 ° C ∽+105 ° C
Output voltage: fully proportional measurement (gain and offset)
Open-loop Hall effect principle
Low voltage application
Single-pole +5VDC power supply
Primary current measurement range up to ±100A
Working temperature range: -40 ° C ∽+105 ° C
Output voltage: fully proportional measurement (gain and offset)
Specification Parameters
| Measurement range Ip | 30～1000A |
Product Aperture(mm) | Ф28 |
| Coil Turns (ratio) N | — |
| Rated Output | 2.5V±2V |
| Supply Voltage | ±5V(±5%) |
| Accuracy | ±1% |
| Linearity | ±1% |
| Zero Offset | ±20mV |
| Magnetic Imbalance | ±20mV |
| Zero point offset temperature drift | ±0.03mV/°C |
| Amplitude temperature drift | ±0.03%/°C |
| Frequency bandwidth | 10KHz |
| Response Time | ≤10μS |
Current Consumption | ≤15mA |
| Ambient operating temperature | -40~105°C |
| Ambient storage temperature | -40~145°C |
| Mass | ≤100g |
| Insulation Voltage | 3KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 33 |
| Clearance | 28 |
| Reference standards | EN50178JB/T7490 |
| — | — |
