EV(electric vehicle) Current Sensor Series

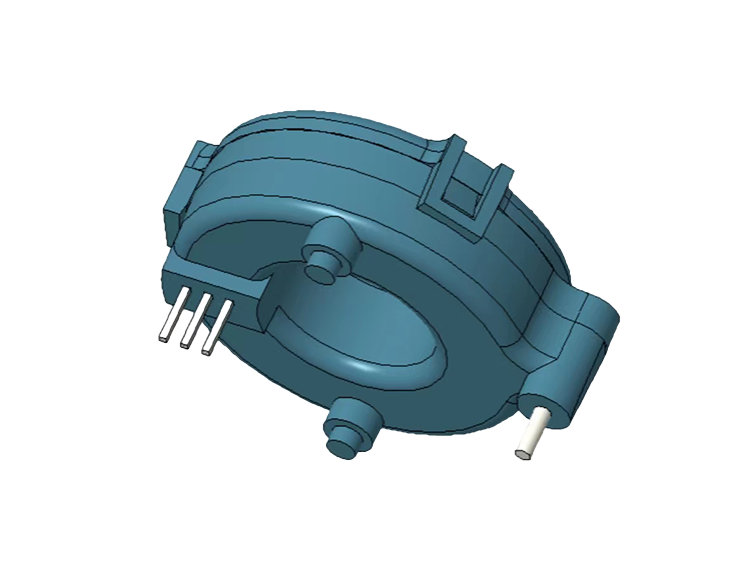

SP10D5（±5V、50A~500A、3uS~10uS、10KHz~100KHz、0.8%~1%、-40℃~85℃）
SP10D5（±5V、50A~500A、3uS~10uS、10KHz~100KHz、0.8%~1%、-40℃~85℃）
Product Features:
Open-loop Hall effect principle
Low voltage application
Single-pole +5VDC power supply
Working temperature range: -40 ° C ∽+85 ° C
Output voltage: fully proportional measurement (gain and offset)
Open-loop Hall effect principle
Low voltage application
Single-pole +5VDC power supply
Working temperature range: -40 ° C ∽+85 ° C
Output voltage: fully proportional measurement (gain and offset)
Specification Parameters
| Measurement range Ip | 50～500A |
Product Aperture(mm) | Ф9.6 |
| Coil Turns (ratio) N | — |
| Rated Output | 2.5V±2V |
| Supply Voltage | ±5V(±5%) |
| Accuracy | ±1% |
| Linearity | ±0.5% |
| Zero Offset | ±20mV |
| Magnetic Imbalance | ±20mV |
| Zero point offset temperature drift | ±1.2mV/°C |
| Amplitude temperature drift | — |
| Frequency bandwidth | 25KHz |
| Response Time | ≤5μS |
Current Consumption | ≤15mA |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~125°C |
| Mass | ≤12g |
| Insulation Voltage | 3KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | — |
| Clearance | — |
| Reference standards | EN50178JB/T7490 |
| — | — |
