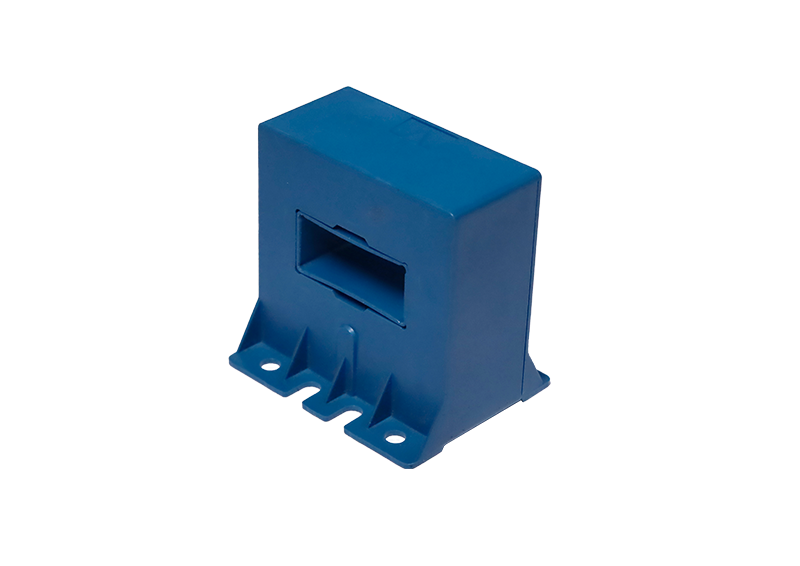

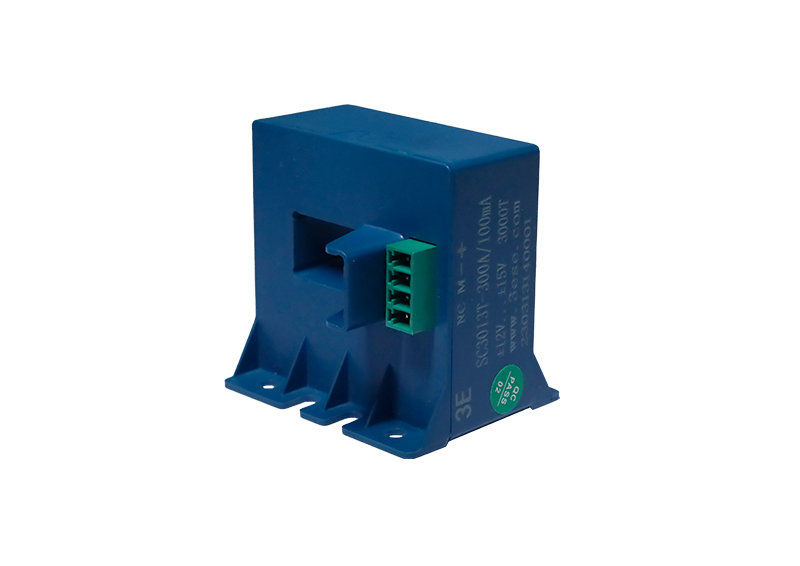

Closed Loop Hall Effect Current Sensor Series
SC3013T（±15V、50A~500A、1uS~3uS、10KHz~100KHz、0.8%~1%、-40℃~85℃）
SC3013T（±15V、50A~500A、1uS~3uS、10KHz~100KHz、0.8%~1%、-40℃~85℃）
Product Features:
Ultra-wide measuring range
Primary nominal current：50A~300A
Operating ambient temperature range：-40~85℃
Applied in the DC, AC and pulse current
Ultra-wide measuring range
Primary nominal current：50A~300A
Operating ambient temperature range：-40~85℃
Applied in the DC, AC and pulse current
Specification Parameters
| Measurement range Ip | 50~300A |
Product Aperture(mm) | 30X13 |
| Coil Turns (ratio) N | 1:2000； 1:2500；1:3000 |
| Rated Output | Io=Ip/N |
| Supply Voltage | ±15~±24V(±5%) |
| Accuracy | ±1% |
| Linearity | ±0.1% |
| Zero Offset | ±0.15mA |
| Magnetic Imbalance | ±0.15mA |
| Zero point offset temperature drift | ±5μA/°C |
| Amplitude temperature drift | ±10μA/°C |
| Frequency bandwidth | 50KHz |
| Response Time | ≤3μS |
Current Consumption | ≤15mA+Io |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~95°C |
| Mass | ≤140g |
| Insulation Voltage | 5.5KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 21.2 |
| Clearance | 11.2 |
| Reference standards | EN50178JB/T7490 |
| — | — |
