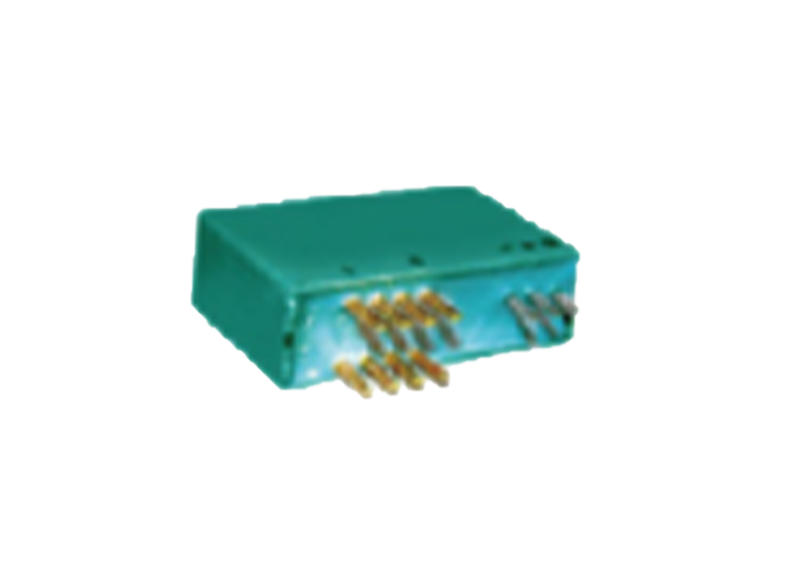

Hall Effect Current Sensor(PCB Mounting) Series
SC5（±15V、3A~15A、<1uS、100KHz~250KHz、0.5%~0.8%、-40℃~85℃）
SC5（±15V、3A~15A、<1uS、100KHz~250KHz、0.5%~0.8%、-40℃~85℃）
Product Features:
Operating ambient temperature range：-40~85℃
Applied in the DC, AC and pulse current
Operating ambient temperature range：-40~85℃
Applied in the DC, AC and pulse current
Specification Parameters
| Measurement range Ip | 5~50A |
Product Aperture(mm) | — |
| Coil Turns (ratio) N | 1000； 2000 |
| Rated Output | Io=Ip/N |
| Supply Voltage | ±15V(±5%) |
| Accuracy | ±0.5% |
| Linearity | ±0.1% |
| Zero Offset | ±0.2mA |
| Magnetic Imbalance | — |
| Zero point offset temperature drift | ±0.5mA/°C |
| Amplitude temperature drift | — |
| Frequency bandwidth | 200KHz |
| Response Time | ≤1μS |
Current Consumption | ≤20mA+Io |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~125°C |
| Mass | ≤15g |
| Insulation Voltage | 5KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 6.4 |
| Clearance | 6.4 |
| Reference standards | EN50178JB/T7490 |
| — | — |
