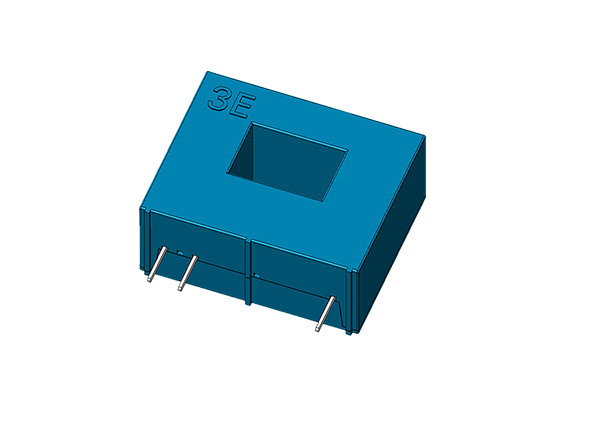

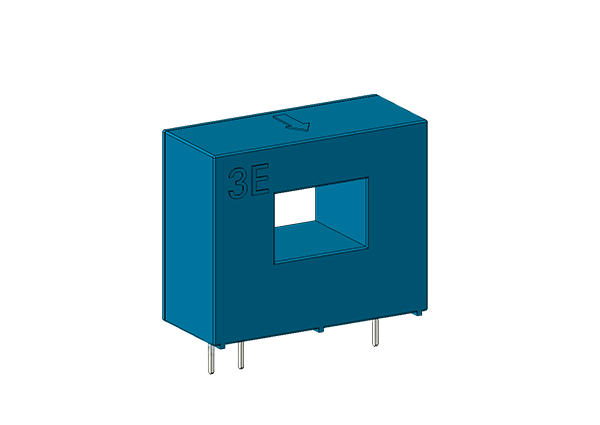

Hall Effect Current Sensor(PCB Mounting) Series
SC6（±15V、50A~500A、1uS~3uS、100KHz~250KHz、<0.5%、-40℃~85℃）
SC6（±15V、50A~500A、1uS~3uS、100KHz~250KHz、<0.5%、-40℃~85℃）
Product Features:
Excellent accuracy
±15V power supply
Very good linearity
Low temperature drift
Optimized response time
Excellent accuracy
±15V power supply
Very good linearity
Low temperature drift
Optimized response time
Specification Parameters
| Measurement range Ip | 20~200A |
Product Aperture(mm) | 15.5X10.5 |
| Coil Turns (ratio) N | 1000； 2000 |
| Rated Output | Io=Ip/N |
| Supply Voltage | ±12~±15V(±10%) |
| Accuracy | ±0.45% |
| Linearity | ±0.1% |
| Zero Offset | ±0.1mA |
| Magnetic Imbalance | ±0.1mA |
| Zero point offset temperature drift | ±0.5mA/°C |
| Amplitude temperature drift | — |
| Frequency bandwidth | 200KHz |
| Response Time | ≤3μS |
Current Consumption | ≤36mA+Io |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~90°C |
| Mass | ≤25g |
| Insulation Voltage | 2.5KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 3.8 |
| Clearance | 3.8 |
| Reference standards | EN50178JB/T7490 |
| — | — |
