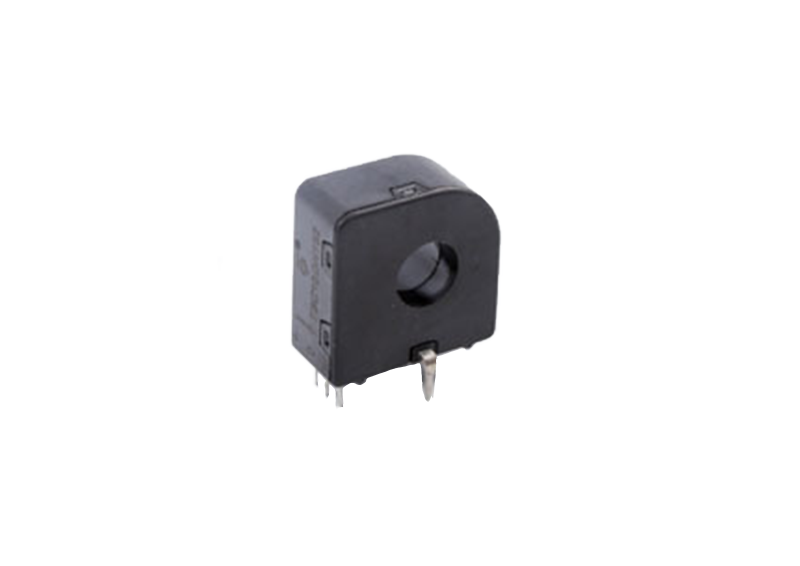

Hall Effect Current Sensor(PCB Mounting) Series
SC82（其它、3A~15A、1uS~3uS、10KHz~100KHz、>1%、-40℃~85℃）
SC82（其它、3A~15A、1uS~3uS、10KHz~100KHz、>1%、-40℃~85℃）
Product Features:
With a galvanic isolation between primary and secondary circuit
It provides accurate electronic measurement of DC, AC or pulsed currents
With a galvanic isolation between primary and secondary circuit
It provides accurate electronic measurement of DC, AC or pulsed currents
Specification Parameters
| Measurement range Ip | 3～50A |
Product Aperture(mm) | Ф8.5 |
| Coil Turns (ratio) N | 960; 1152; 1200; 1280 |
| Rated Output | Io=Ip/N |
| Supply Voltage | ±3.3V(±5%) |
| Accuracy | ±1.5% |
| Linearity | ±0.1% |
| Zero Offset | ±1.66V |
| Magnetic Imbalance | — |
| Zero point offset temperature drift | ±0.5mV/°C |
| Amplitude temperature drift | ±0.5mV/°C |
| Frequency bandwidth | 100KHz |
| Response Time | ≤1μS |
Current Consumption | ≤15mA+Io |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~125°C |
| Mass | ≤9g |
| Insulation Voltage | 2.5KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | — |
| Clearance | — |
| Reference standards | EN50178JB/T7490 |
| — | — |
