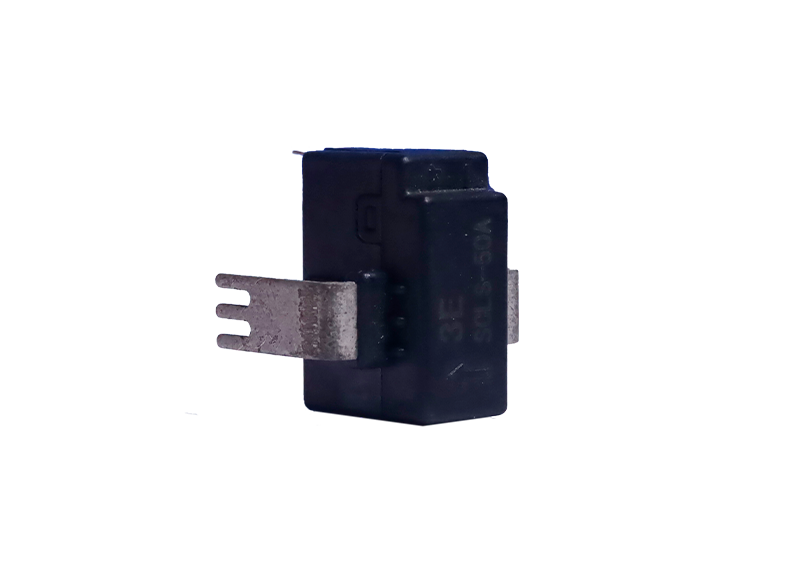

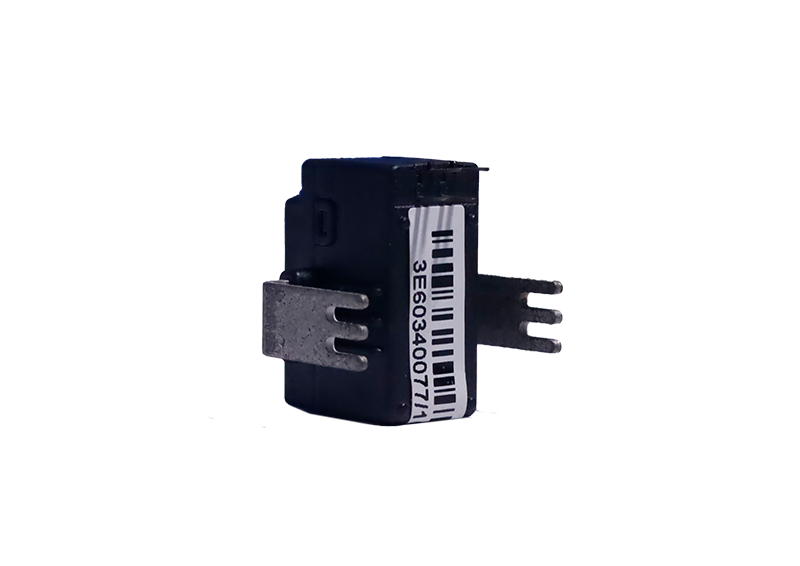

Hall Effect Current Sensor(PCB Mounting)Series
SCLS（5V、3A~15A、1uS~3uS、10KHz~100KHz、0.8%~1%、-40℃~105℃）
SCLS（5V、3A~15A、1uS~3uS、10KHz~100KHz、0.8%~1%、-40℃~105℃）
Product Features:
With a galvanic isolation between primary and secondary circuit
Strong anti-interference ability
It provides accurate electronic measurement of DC, AC or pulsed currents
With a galvanic isolation between primary and secondary circuit
Strong anti-interference ability
It provides accurate electronic measurement of DC, AC or pulsed currents
Specification Parameters
| Measurement range Ip | 6～50A |
Product Aperture(mm) | — |
| Coil Turns (ratio) N | 1000；1125；1200；1250 |
| Rated Output | 2.5±0.8V |
| Supply Voltage | 5V(±5%) |
| Accuracy | ±1% |
| Linearity | ±0.5% |
| Zero Offset | 2.5V±5% |
| Magnetic Imbalance | — |
| Zero point offset temperature drift | ±0.5mV/°C |
| Amplitude temperature drift | ±0.5mV/°C |
| Frequency bandwidth | 100KHz |
| Response Time | ≤1μS |
Current Consumption | ≤15mA+Io |
| Ambient operating temperature | -40~105°C |
| Ambient storage temperature | -40~125°C |
| Mass | ≤12g |
| Insulation Voltage | 3KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | — |
| Clearance | — |
| Reference standards | EN50178JB/T7490 |
| — | — |
