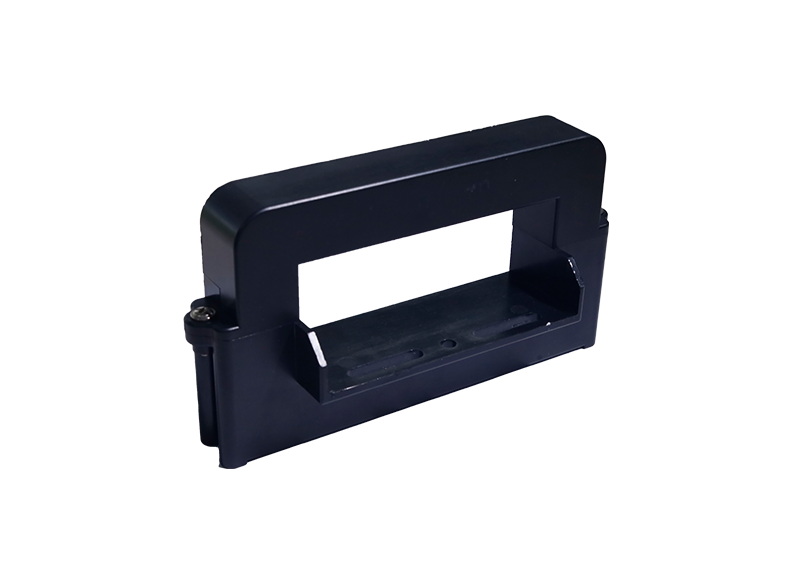

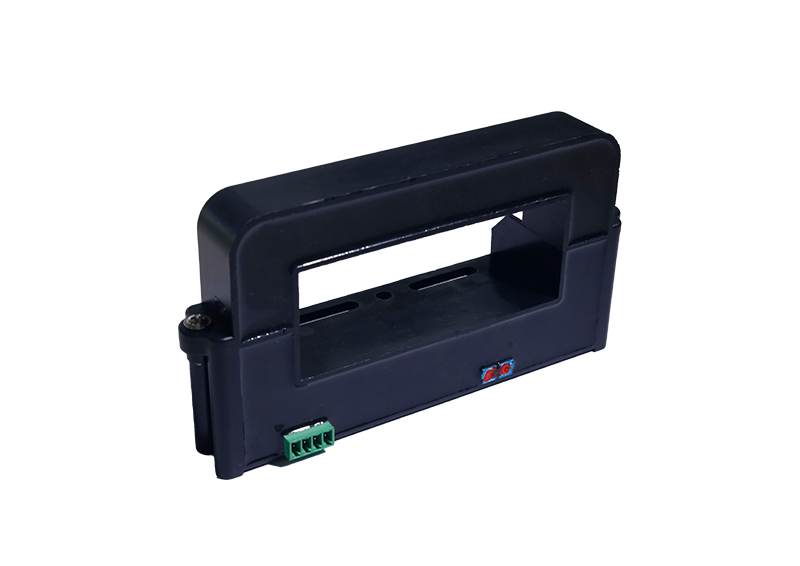

Split Core Hall Effect Current Sensor Series
SZ10436/KZ10436（±12V、50A~500A、<1uS、<10KHz、0.5%~0.8%、-40℃~85℃）
SZ10436/KZ10436（±12V、50A~500A、<1uS、<10KHz、0.5%~0.8%、-40℃~85℃）
Product Features:
Open loop hall-effect technology
Split core design
High Accuracy
Low temperature drift
Low hysteresis
Open loop hall-effect technology
Split core design
High Accuracy
Low temperature drift
Low hysteresis
Specification Parameters
| Measurement range Ip | 600～2000A |
Product Aperture(mm) | 102.4X38.2 |
| Coil Turns (ratio) N | — |
| Rated Output | 4V |
| Supply Voltage | ±12V(±10%) |
| Accuracy | ±0.5% |
| Linearity | ±0.5% |
| Zero Offset | ±20mV |
| Magnetic Imbalance | ±20mV |
| Zero point offset temperature drift | ±1mV/°C |
| Amplitude temperature drift | ±0.1%/°C |
| Frequency bandwidth | 1KHz |
| Response Time | ≤1mS |
Current Consumption | ≤32mA |
| Ambient operating temperature | -25~85°C |
| Ambient storage temperature | -40~85°C |
| Mass | ≤630g |
| Insulation Voltage | 2.5KVrms/50HZ/2mA/1min |
| Insulation Impedance | 100MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 33 |
| Clearance | 27 |
| Reference standards | EN50178JB/T7490 |
| — | — |
