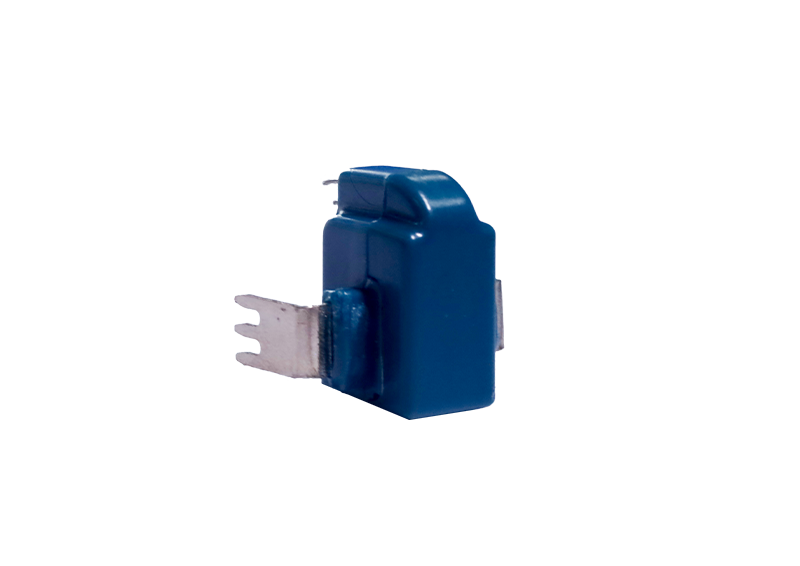

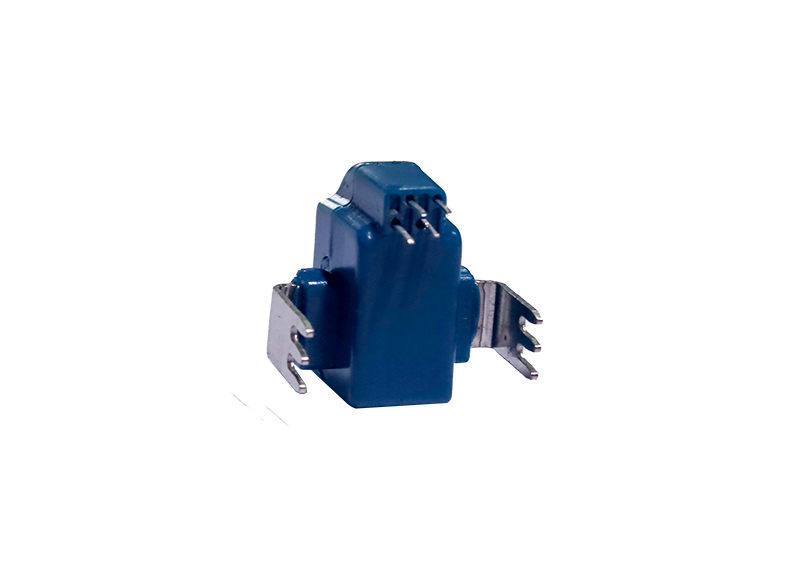

Solar Energy Current Sensor Series
SPLS（±5V、3A~15A、1uS~3uS、100KHz~250KHz、0.8%~1%、-40℃~105℃）
SPLS（±5V、3A~15A、1uS~3uS、100KHz~250KHz、0.8%~1%、-40℃~105℃）
Product Features:
Integrated hall-effect technology
Wide bandwidth（>250kHz),quick response time
Insulation voltage:>4KV/AC
Unipolar power supply
PCB mounting
Integrated hall-effect technology
Wide bandwidth（>250kHz),quick response time
Insulation voltage:>4KV/AC
Unipolar power supply
PCB mounting
Specification Parameters
| Measurement range Ip | 10~50A |
Product Aperture(mm) | — |
| Coil Turns (ratio) N | — |
| Rated Output | 2.5V±2V |
| Supply Voltage | ±5V(±5%) |
| Accuracy | ±1% |
| Linearity | ±1% |
| Zero Offset | ±10mV |
| Magnetic Imbalance | ±5mV |
| Zero point offset temperature drift | — |
| Amplitude temperature drift | — |
| Frequency bandwidth | 250KHz |
| Response Time | ≤3μS |
Current Consumption | ≤15mA |
| Ambient operating temperature | -40~105°C |
| Ambient storage temperature | -40~105°C |
| Mass | ≤6.5g |
| Insulation Voltage | 4KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | — |
| Clearance | — |
| Reference standards | EN50178JB/T7490 |
| — | — |
