SLD Digital Current Sensor Series (RS485 output)

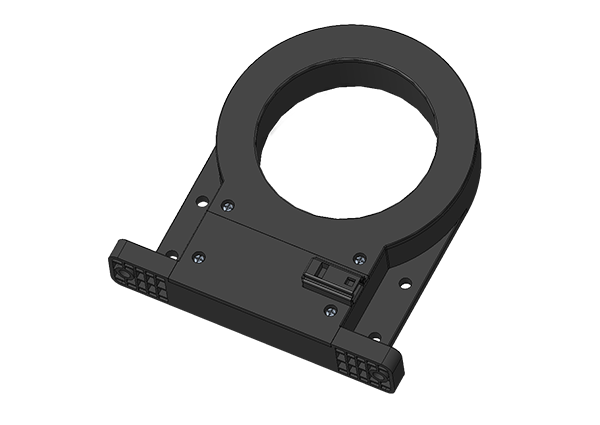

KLD80（12V、<100mA、DC、0.8%~1%、-40℃~85℃）
KLD80（12V、<100mA、DC、0.8%~1%、-40℃~85℃）
Product Features:
Unipolar +12Vsupply voltage
Peak measurement current:±50mA
Ambient operating temperature：-40℃∽+85℃
Output signal: High speed CAN(500kbps)
Primary secondary side isolation measurement
Connector type: TE/AMP 1473672-1
Unipolar +12Vsupply voltage
Peak measurement current:±50mA
Ambient operating temperature：-40℃∽+85℃
Output signal: High speed CAN(500kbps)
Primary secondary side isolation measurement
Connector type: TE/AMP 1473672-1
Specification Parameters
| Measurement range Ip | 50mA |
Product Aperture(mm) | φ80 |
| Baud Rate | 500kbps |
| Output | CAN |
| Supply Voltage | 12V（±10%） |
| Accuracy | ±1% |
| Linearity | ±1% |
| Zero Offset | — |
| Magnetic Imbalance | ±0.5mA |
| Zero point offset temperature drift | — |
| Amplitude temperature drift | 500ppm/℃ |
| Frequency bandwidth | DC |
| Response Time | — |
Current Consumption | ≤25mA |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~105°C |
| Mass | ≤320g |
| Insulation Voltage | 4.25KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 33 |
| Clearance | 18 |
| Reference standards | EN50178JB/T7490 |
| — | — |
