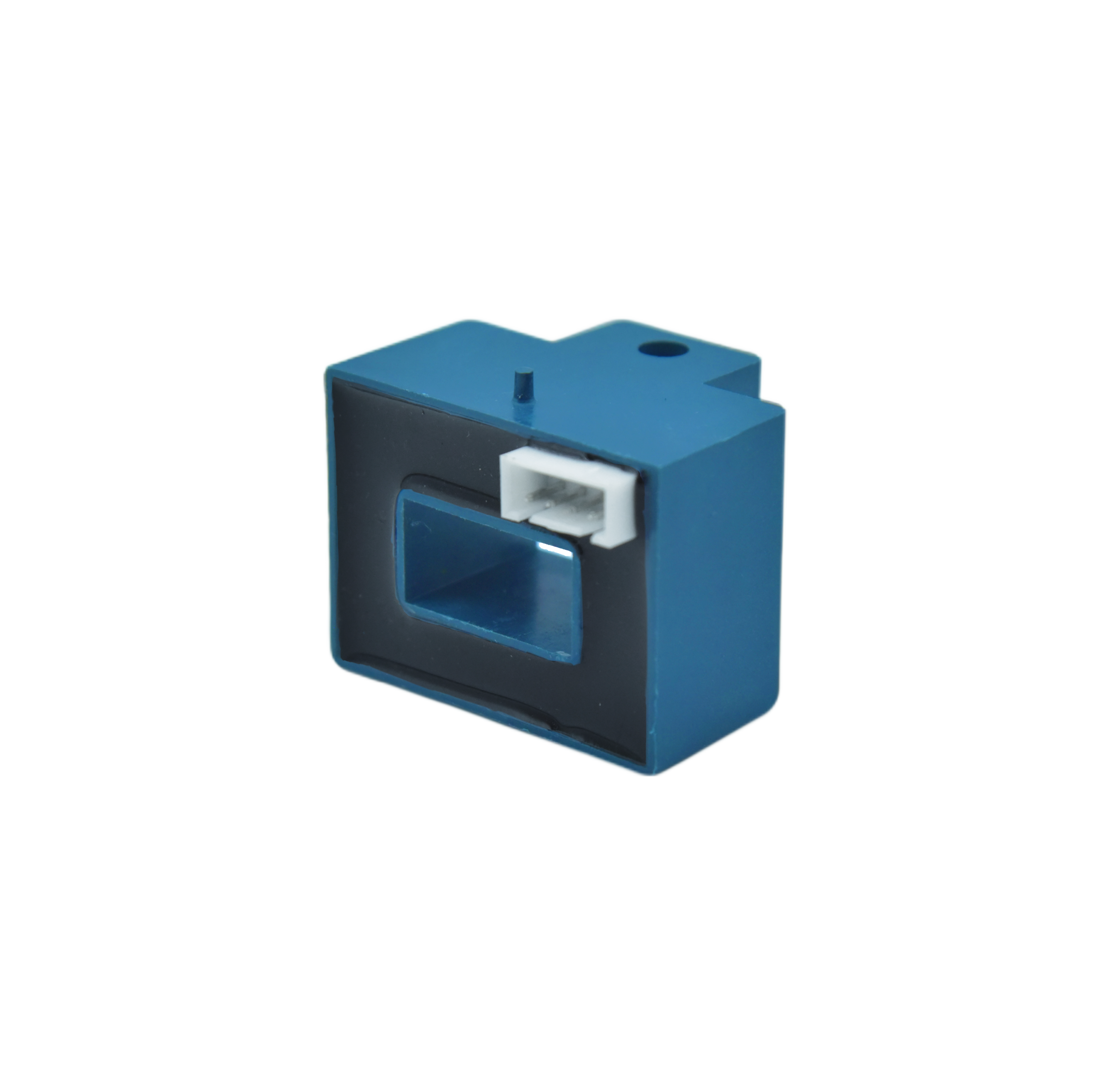

Solar Energy Current Sensor Series
KP3（5V、50A~500A、1uS~3uS、10KHz~100KHz、0.8%~1%、-40℃~85℃）
KP3（5V、50A~500A、1uS~3uS、10KHz~100KHz、0.8%~1%、-40℃~85℃）
Product Features:
Integrated hall-effect technology
Wide bandwidth,quick response time
Insulation voltage:3KV/AC
High precision; Low-temperature drift Low hysteresis.
Integrated hall-effect technology
Wide bandwidth,quick response time
Insulation voltage:3KV/AC
High precision; Low-temperature drift Low hysteresis.
Specification Parameters
| Measurement range Ip | 50～800A |
Product Aperture(mm) | 20X10 |
| Coil Turns (ratio) N | — |
| Rated Output | 4V；5V；2.5±2V |
| Supply Voltage | ±12V；±15V；5V；12V |
| Accuracy | ±1% |
| Linearity | ±1% |
| Zero Offset | ±25mV |
| Magnetic Imbalance | ±25mV |
| Zero point offset temperature drift | ±1.25mV/℃ |
| Amplitude temperature drift | ±1.25mV/℃ |
| Frequency bandwidth | 50KHz |
| Response Time | ≤3μS |
Current Consumption | ≤20mA |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~85°C |
| Mass | ≤85g |
| Insulation Voltage | 3KVrms/50HZ/2mA/1min |
| Insulation Impedance | 500MΩ |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 2.5mm |
| Clearance | 1mm |
| Reference standards | EN50178JB/T7490 |
| — | — |
