Solar Energy Current Sensor Series

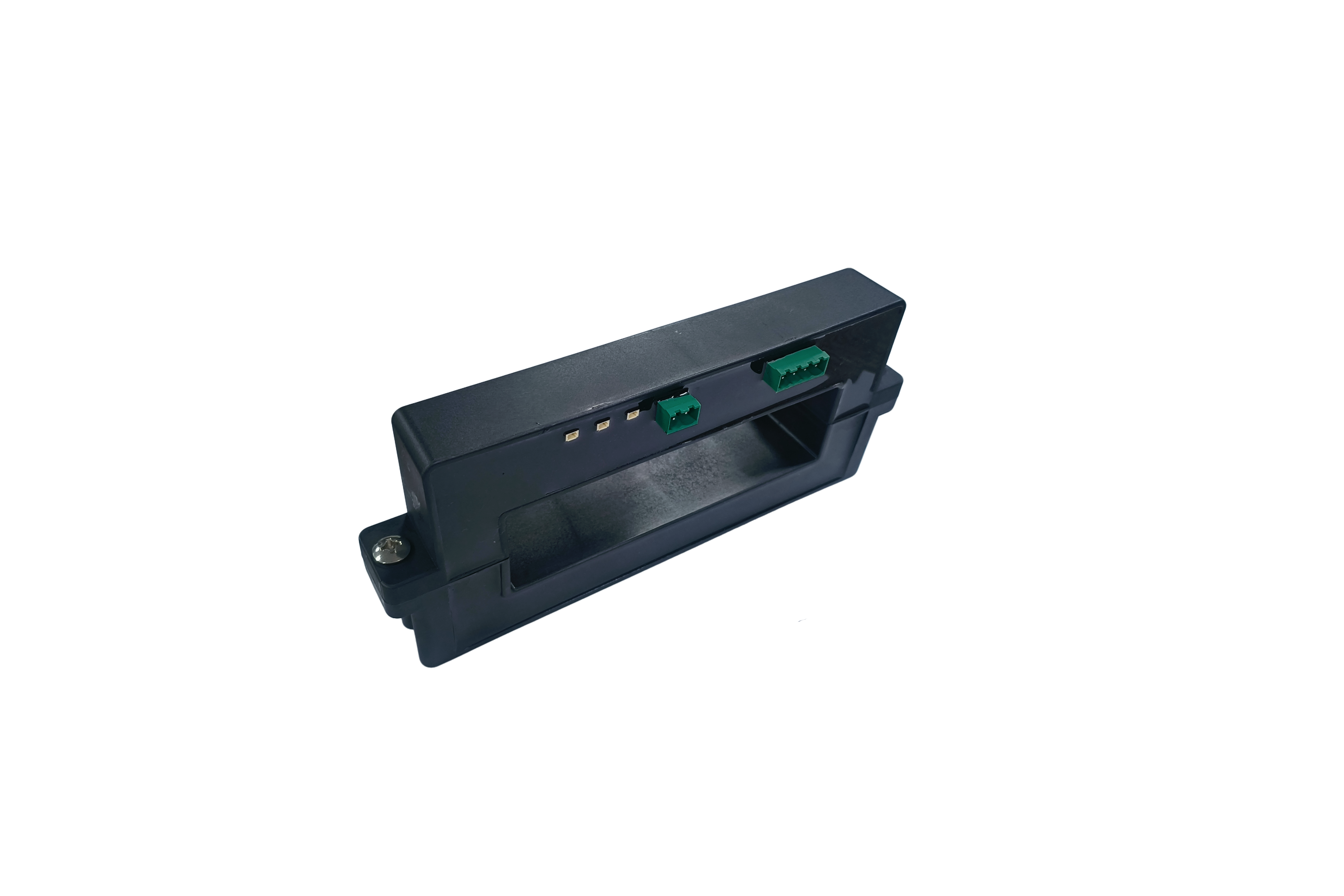

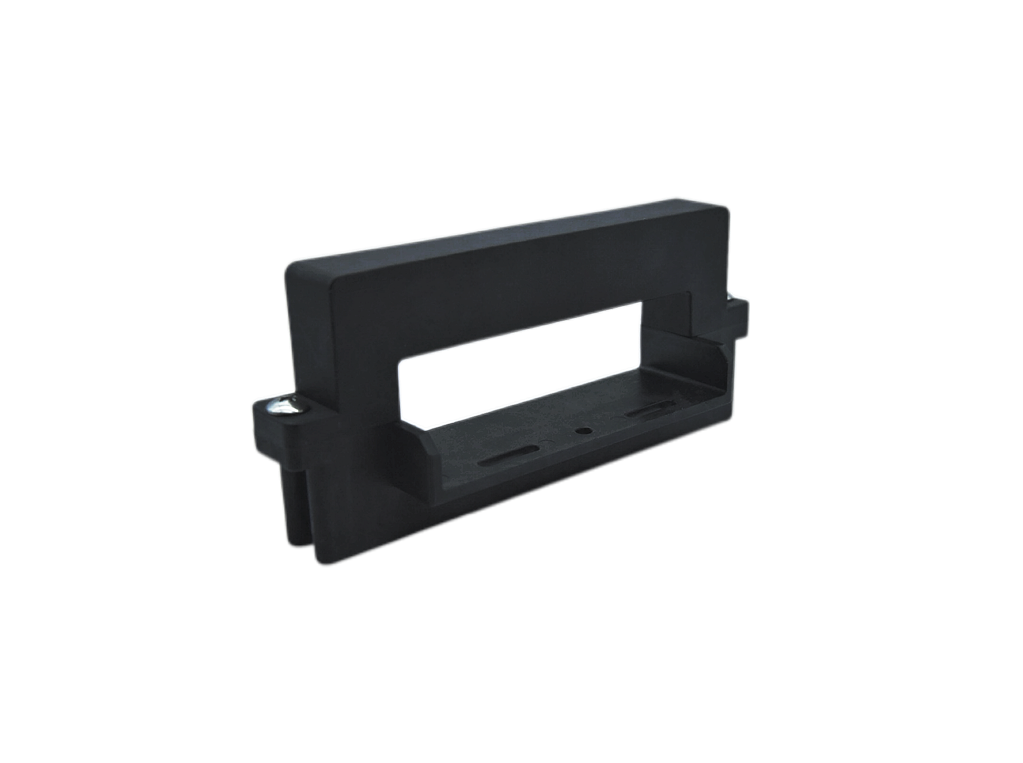

KP14036K（±12V、50A~500A、>10uS、10KHz~100KHz、0.8%~1%、-40℃~85℃）
KP14036K（±12V、50A~500A、>10uS、10KHz~100KHz、0.8%~1%、-40℃~85℃）
Product Features:
Insulation voltage:2.5KV/AC
High precision; Low-temperature drift Low hysteresis.
Insulation voltage:2.5KV/AC
High precision; Low-temperature drift Low hysteresis.
Specification Parameters
| Measurement range Ip | 100～4000A |
Product Aperture(mm) | 140X36 |
| Coil Turns (ratio) N | — |
| Rated Output | 4V |
| Supply Voltage | ±12V |
| Accuracy | ±1% |
| Linearity | ±1% |
| Zero Offset | ±10mV |
| Magnetic Imbalance | ±20mV |
| Zero point offset temperature drift | — |
| Amplitude temperature drift | — |
| Frequency bandwidth | 25KHz |
| Response Time | ≤20μS |
Current Consumption | ≤35mA |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~85°C |
| Mass | ≤630g |
| Insulation Voltage | 2.5KVrms/50HZ/2mA/1min |
| Insulation Impedance | — |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 33mm |
| Clearance | 27mm |
| Reference standards | EN50178JB/T7490 |
| — | — |
