Solar Energy Current Sensor Series

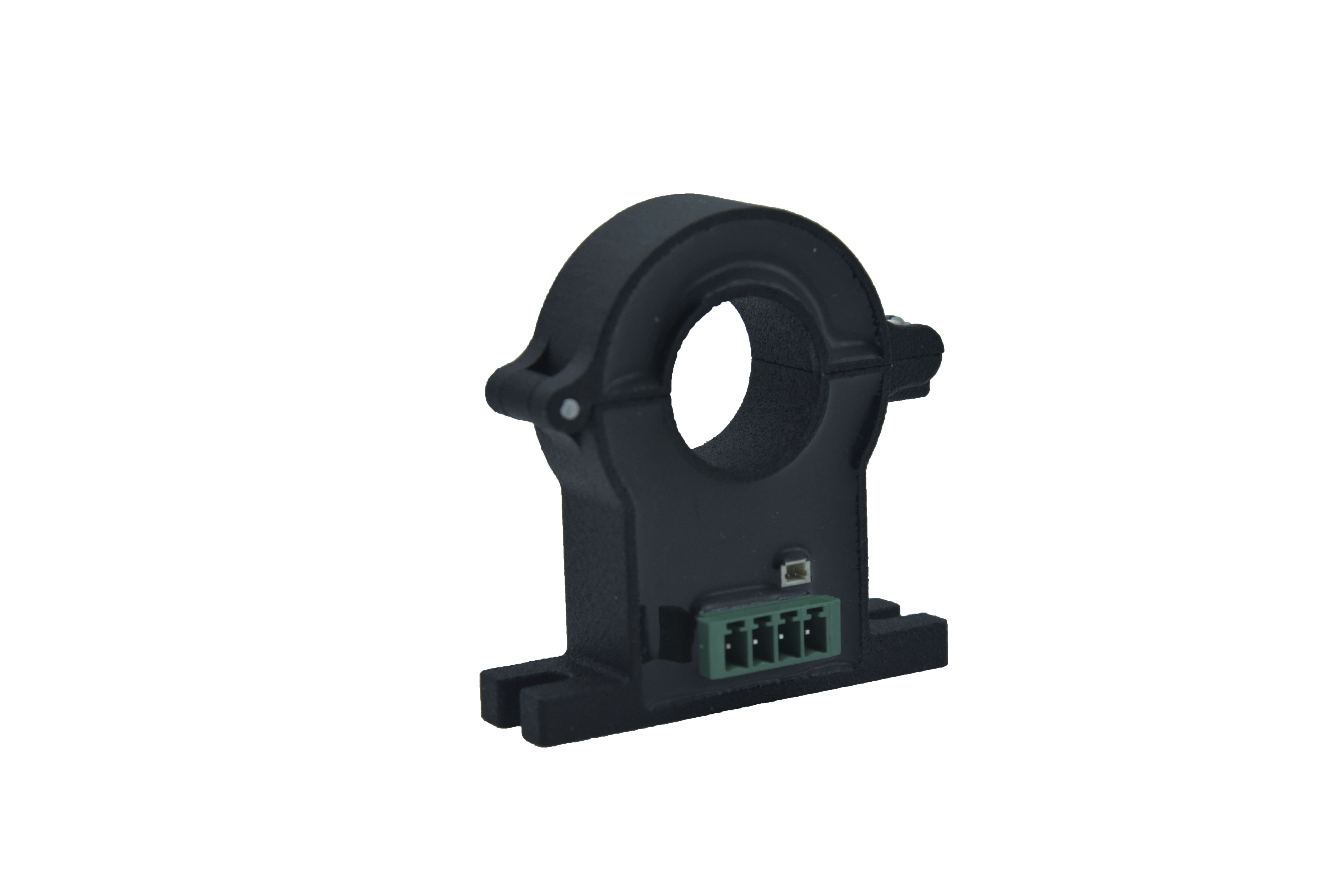

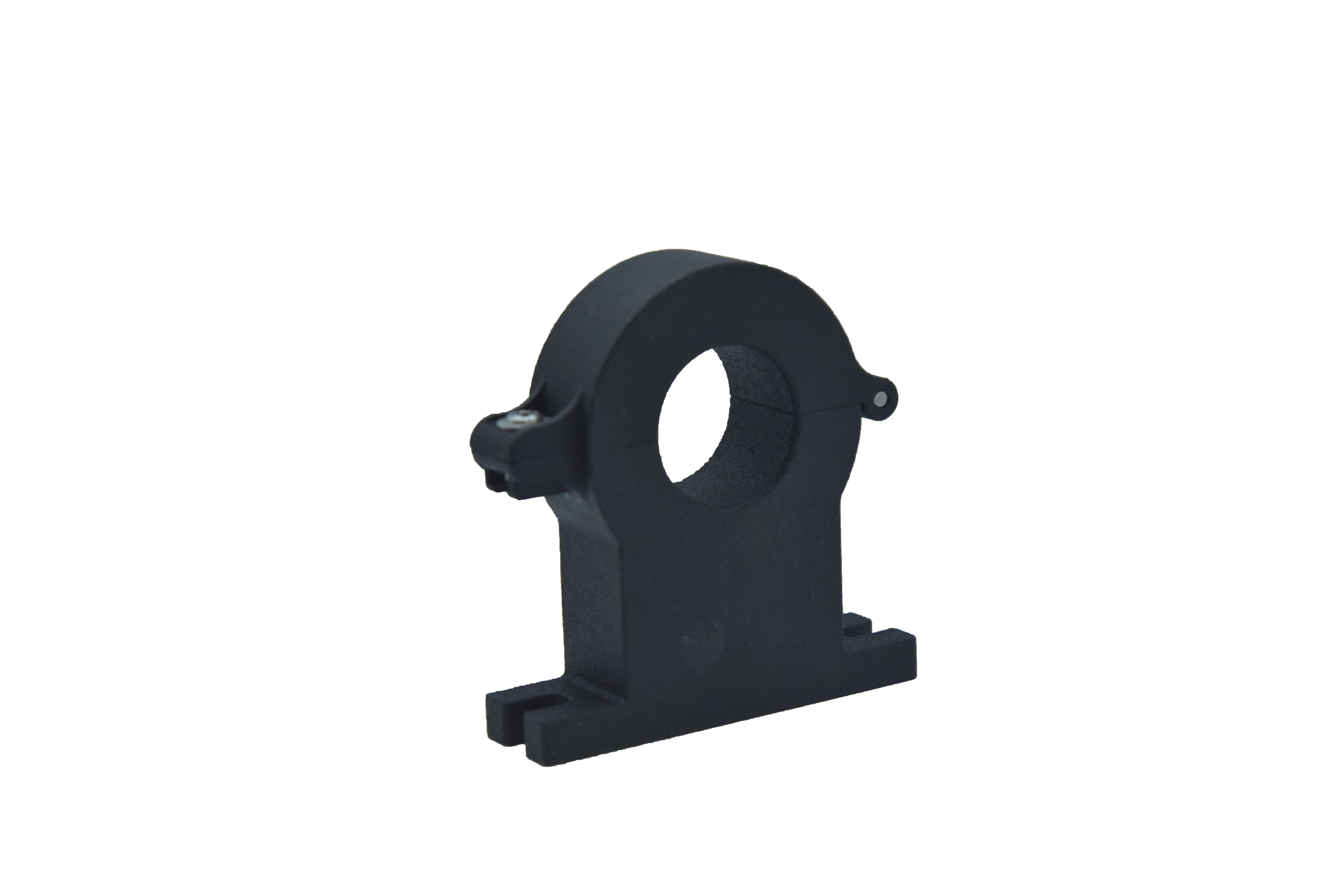

KP20CK（12V、50A~500A、>10uS、DC、0.8%~1%、 Other）
KP20CK（12V、50A~500A、>10uS、DC、0.8%~1%、 Other）
Product Features:
Integrated Hall effect;
With insulation withstand voltage of 2.5KV/AC;
High temperature stability.
Integrated Hall effect;
With insulation withstand voltage of 2.5KV/AC;
High temperature stability.
Specification Parameters
| Measurement range Ip | 50～500A |
Product Aperture(mm) | Ф20 |
| Coil Turns (ratio) N | — |
| Rated Output | 0.4-3.9V；2.5±2V |
| Supply Voltage | 12V；5V |
| Accuracy | ±0.5% |
| Linearity | ±0.5% |
| Zero Offset | ±10mV |
| Magnetic Imbalance | ±20mV |
| Zero point offset temperature drift | — |
| Amplitude temperature drift | — |
| Frequency bandwidth | DC |
| Response Time | ＞10μS |
Current Consumption | ≤35mA |
| Ambient operating temperature | -10~55°C |
| Ambient storage temperature | -40~85°C |
| Mass | ≤80g |
| Insulation Voltage | 2.5KVrms/50HZ/2mA/1min |
| Insulation Impedance | — |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | — |
| Clearance | — |
| Reference standards | EN50178JB/T7490 |
| — | — |
